Semi-Automatic Can Welding Machine for Tin Can Production
+
  • Semi-Automatic Can Welding Machine for Tin Can Production

Semi-Automatic Can Welding Machine for Tin Can Production

US$15,600.00-16,500.00

MESSAGE
CONTACT

Product Details



 Semiautomatic welder

This welder used for welder the paint can and food cans in semiautomatic way.

is equipped with a specially designed welding head that can adjust to different can sizes, ensuring a precise and strong weld every time. The machine also features a user-friendly control panel that allows operators to easily adjust welding parameters such as heat, pressure, and welding time.

With its high efficiency and reliability, this semi-automatic can welding machine is an essential tool for tin can production lines.

 Parameters

ModelFH18-65ZD
Welding Speed6-18m/min
Production Capacity20-80cans/min
Can diameter Range65-286mm
Can Height Range70-420mm
MaterialTinplate/steel-based/chrome plate
Tinplate Thickness Range0.18-0.42mm
Z-bar Oerlap Range0.6mm 0.8mm 1.2mm
Nugget Distance0.5-0.8mm
Seam Point Distance1.38mm   1.5mm
Cooling WaterTemperature 12-18℃ Pressure:0.4-0.5MpaDischarge:7L/min
Power Supply380V±5% 50Hz
Total Power18KVA
Machine Measurements1200*1100*1800
Weight1200kg

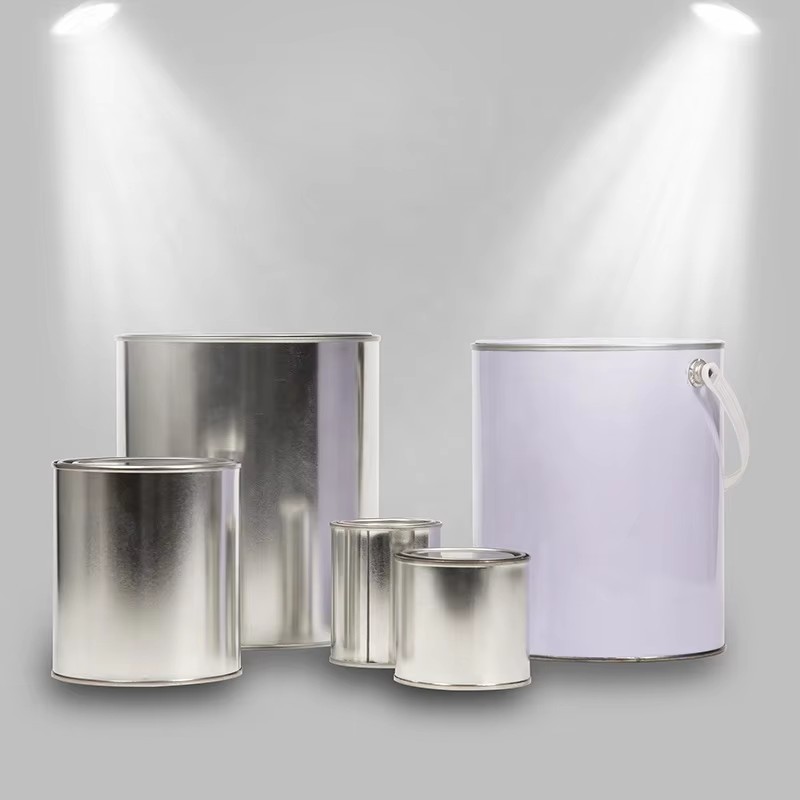

Photo of Finished cans

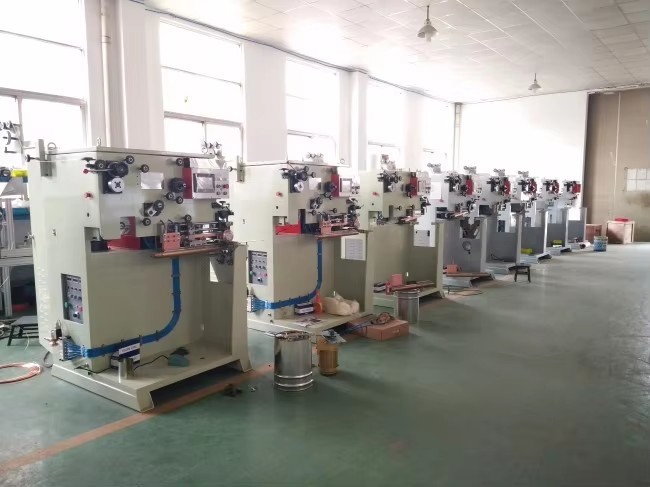

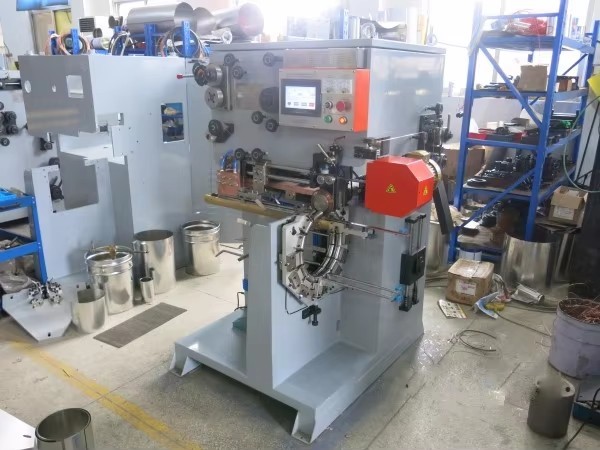

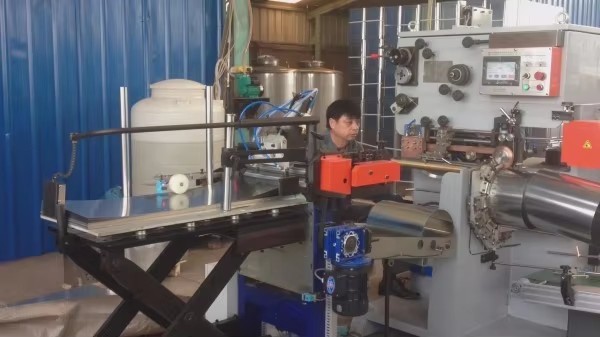

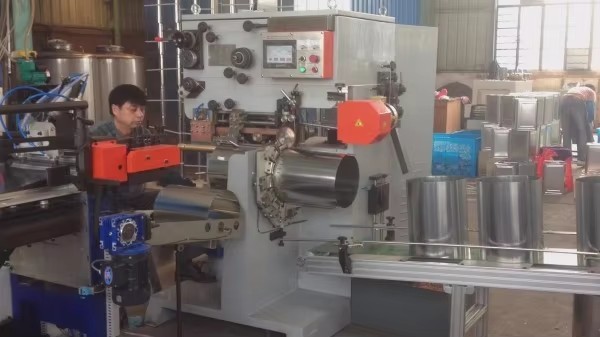

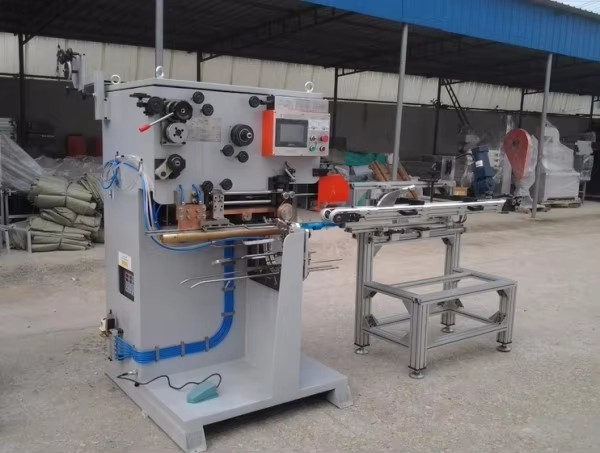

Photo of welder machine

YouTube Video：

Basic Info：
